產品描述

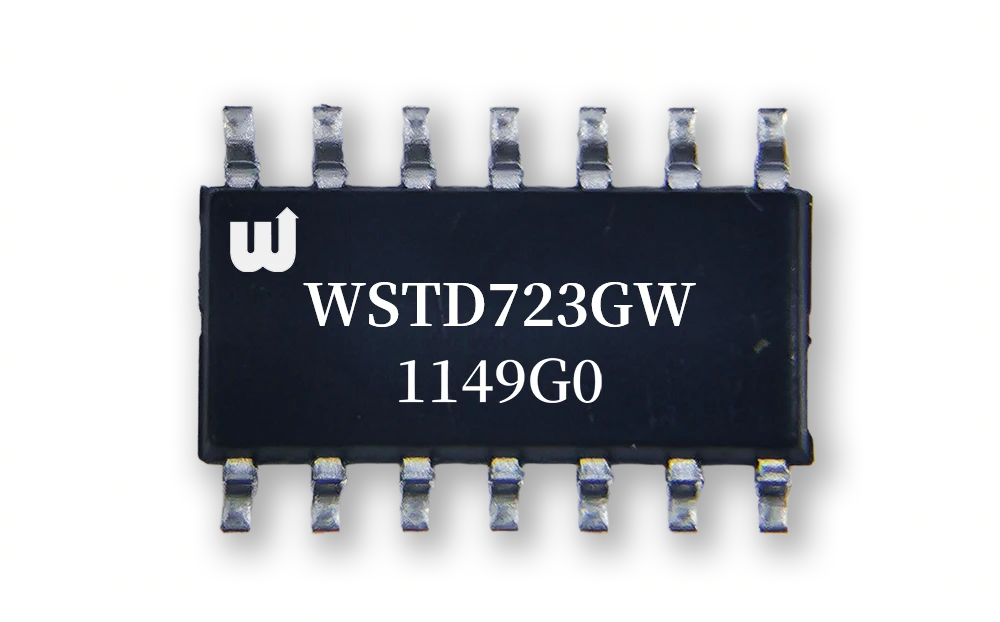

雙通道智能高側驅動開關，70mΩ，SOP-14L，符合汽車電子AEC-Q100 標準
主要特點
Basic Features
Dual channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Optimized electromagnetic compatibility
Fast switching device
Wide operating voltage range
Diagnostic Functions
Diagnostic feedback with open drain output and integrated pull up resistors
Off-state open load detection
OUT short to VS detection
Feedback ofThermal shutdown in ON-state
Diagnostic feedback of both channels works properly in case of inverse current
Protection Functions
Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Thermal shutdown
Protection against loss of ground and loss of VS
Reverse battery protection with extemal resistor
Electrostatic discharge protection
規格書
| 文檔名稱 | 文檔描述 | 下載 |
|---|---|---|
| WSTD723GW | 1041KB |
|
